BoliOptics

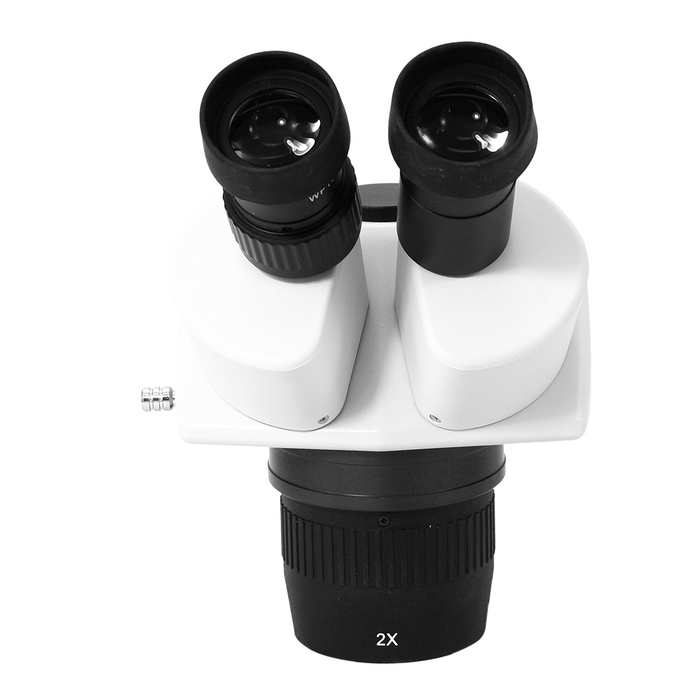

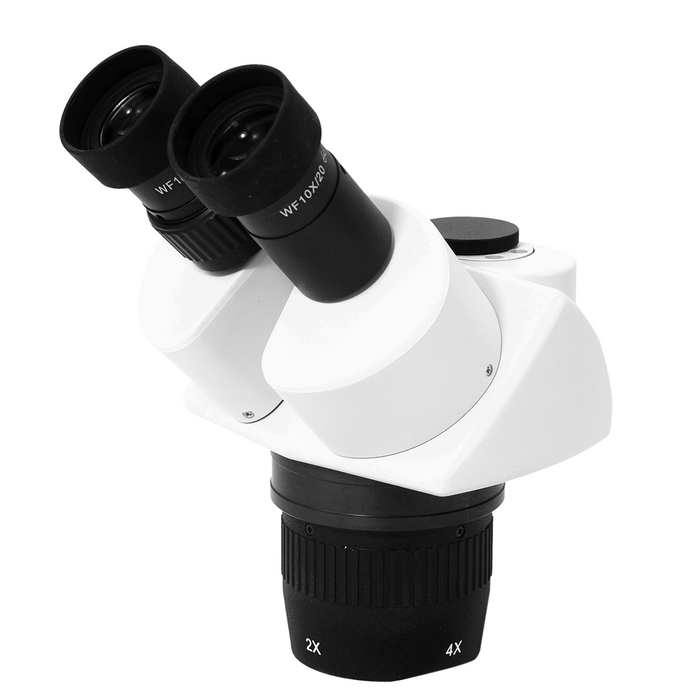

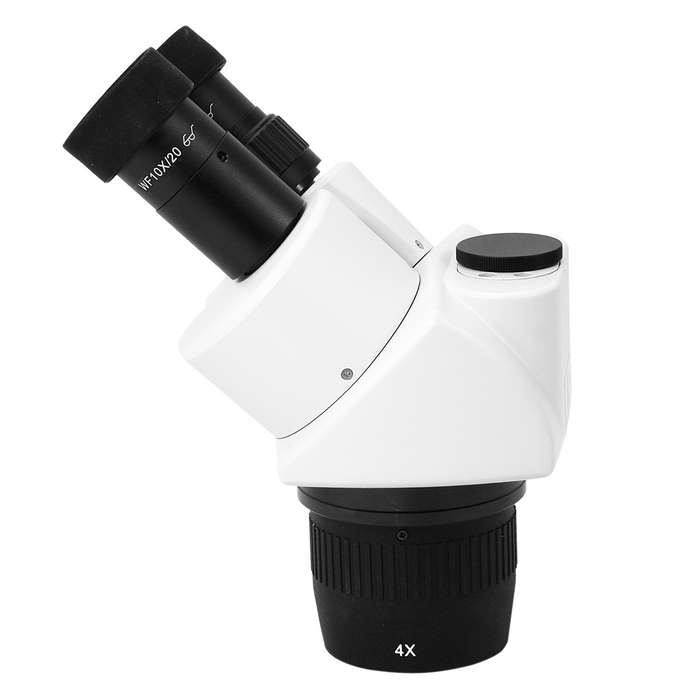

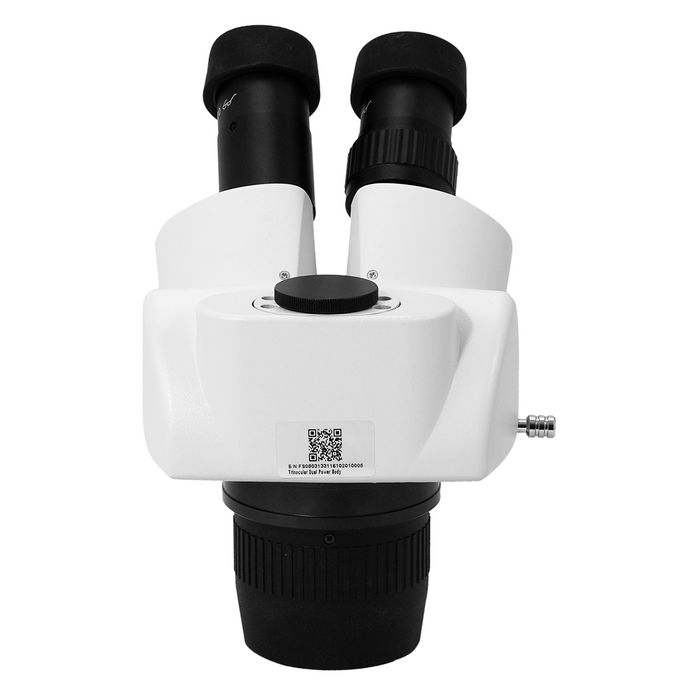

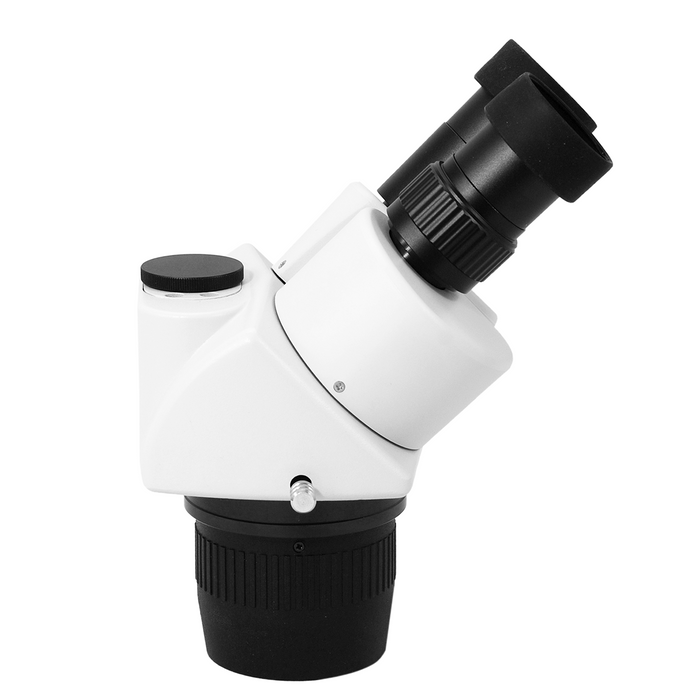

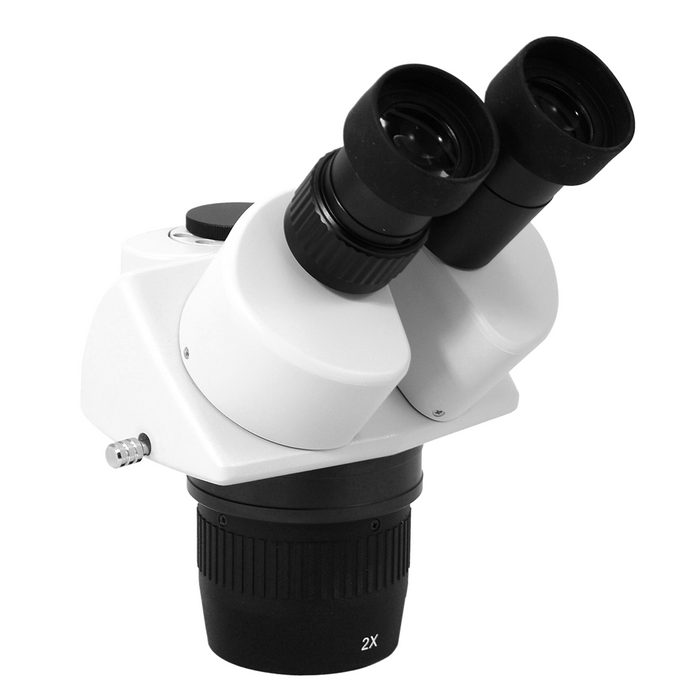

20X/40X Dual Power Stereo Microscope Head, Trinocular, Focusable Eyepiece FS05031331
20X/40X Dual Power Stereo Microscope Head, Trinocular, Focusable Eyepiece FS05031331
Regular price
$143.20 USD
Regular price
$185.98 USD
Sale price
$143.20 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Microscope Optical Data Sheet | ||||||||||||
| P/N | Objective | Objective Working Distance | Eyepiece | |||||||||
| FS05031331 (10X Dia. 20mm) | SZ05033411 (15X Dia. 15mm) | SZ05033611 (20X Dia. 10mm) | SZ19013711 (25X Dia. 10mm) | SZ19013811 (30X Dia. 8mm) | ||||||||
| Magnification | Field of View(mm) | Magnification | Field of View(mm) | Magnification | Field of View(mm) | Magnification | Field of View(mm) | Magnification | Field of View(mm) | |||
| FS05031331 | 2/4X | 100mm | 20/40X | 10/5mm | 30/60X | 7.5/3.75mm | 40/80X | 5/2.5mm | 50/100X | 5/2.5mm | 60/120X | 4/2mm |
| 1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification | ||||||||||||
| 2. Field of View=Eyepiece Field of View /（Objective Optical Magnification*Body Magnification） | ||||||||||||
| 3. The Darker background items are Standard items, the white background items are optional items. | ||||||||||||
| Video Microscope Optical Data Sheet | |||
| P/N | Objective | Coupler | |
| FS05036111 (0.35X) | FS05036131 (0.5X) | ||
| Magnification | Magnification | ||
| FS05031331 | 2/4X | 0.7/1.4X | 1/2X |
| 1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification | |||
| Camera Image Sensor Specifications | |||
| No. | Camera Image Sensor Size | Camera image Sensor Diagonal | |
| （mm） | （inch） | ||
| 1 | 1/4 in. | 4mm | 0.157" |
| 2 | 1/3 in. | 6mm | 0.236" |
| 3 | 1/2.8 in. | 6.592mm | 0.260" |
| 4 | 1/2.86 in. | 6.592mm | 0.260" |
| 5 | 1/2.7 in. | 6.718mm | 0.264" |
| 6 | 1/2.5 in. | 7.182mm | 0.283" |
| 7 | 1/2.3 in. | 7.7mm | 0.303" |
| 8 | 1/2.33 in. | 7.7mm | 0.303" |
| 9 | 1/2 in. | 8mm | 0.315" |
| 10 | 1/1.9 in. | 8.933mm | 0.352" |
| 11 | 1/1.8 in. | 8.933mm | 0.352" |
| 12 | 1/1.7 in. | 9.5mm | 0.374" |
| 13 | 2/3 in. | 11mm | 0.433" |
| 14 | 1/1.2 in. | 12.778mm | 0.503" |
| 15 | 1 in. | 16mm | 0.629" |
| 16 | 1/1.1 in. | 17.475mm | 0.688" |
| Digital Magnification Data Sheet | ||
| Image Sensor Size | Image Sensor Diagonal size | Monitor |
| Screen Size (24in) | ||
| Digital Zoom Function | ||
| 1/3 in. | 6mm | 101.6 |
| 1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size | ||
| Microscope Optical and Digital Magnifications Data Sheet | ||||||||||
| Objective | Coupler | Camera | Monitor | Video Microscope Optical Magnifications | Digital Zoom Function | Total Magnification | Field of View (mm) | |||
| PN | Magnification | PN | Magnification | Image Sensor Size | Image Sensor Diagonal size | Screen Size | ||||
| FS05031331 | 2/4X | FS05036111 | 0.35X | 1/3 in. | 6mm | 24in | 0.7/1.4X | 101.6 | 71.12/142.24X | 4.29/8.57mm |
| FS05031331 | 2/4X | FS05036131 | 0.5X | 1/3 in. | 6mm | 24in | 1/2X | 101.6 | 101.6/203.2X | 3/6mm |
| 1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification | ||||||||||
| 2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size | ||||||||||
| 3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size | ||||||||||
| 4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications | ||||||||||
