Rouz Astro Lightweight Losmandy-Style Carbon Dovetail

Lightweight Losmandy-Style Carbon Dovetail fiber composite dovetail for telescope accessories.

An excellent place to save weight, these can be used to carry telescopes and accessories without the unnecessary weight plentily of heavy metal dovetails.

Overview

CAD designed FDM print for maximum strength to weight ratio, saving a lot of weight (typically 1/3 –  1/2 that of metal), that improves mount tracking performance.

Compatible with Rouz Astro tube rings.

• Standard Version: For accessories up to 10lbs – 4kg (not to mount telescopes)

• Heavy Duty Version: Payloads up to 22lbs – 10kg

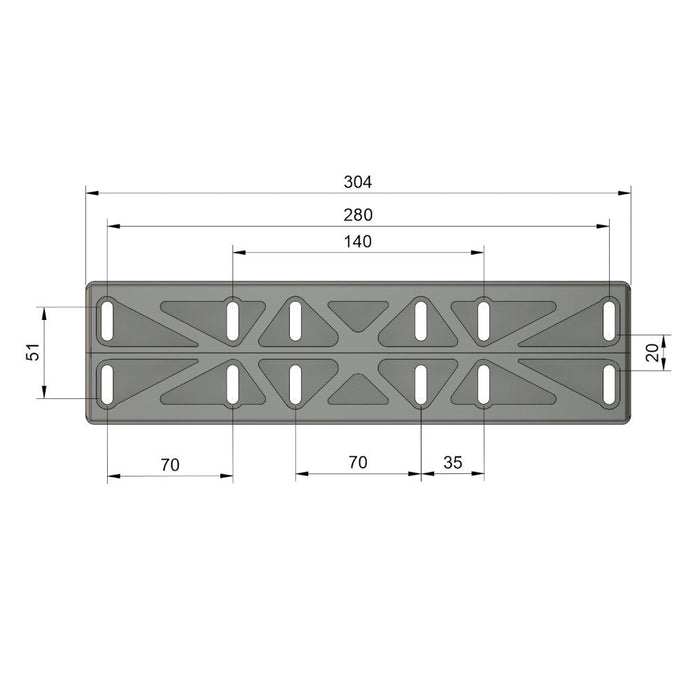

Bolt spacing matches Rouz Astro CNC aluminum 12inch dovetail plates.

*Recommended to use provided washers. Bolts not included.

Technical Specifications

An excellent place to save weight, these can be used to carry telescopes and accessories without the unnecessary weight plentily of heavy metal dovetails.

Overview

CAD designed FDM print for maximum strength to weight ratio, saving a lot of weight (typically 1/3 –  1/2 that of metal), that improves mount tracking performance.

Compatible with Rouz Astro tube rings.

• Standard Version: For accessories up to 10lbs – 4kg (not to mount telescopes)

• Heavy Duty Version: Payloads up to 22lbs – 10kg

Bolt spacing matches Rouz Astro CNC aluminum 12inch dovetail plates.

*Recommended to use provided washers. Bolts not included.

In the Box

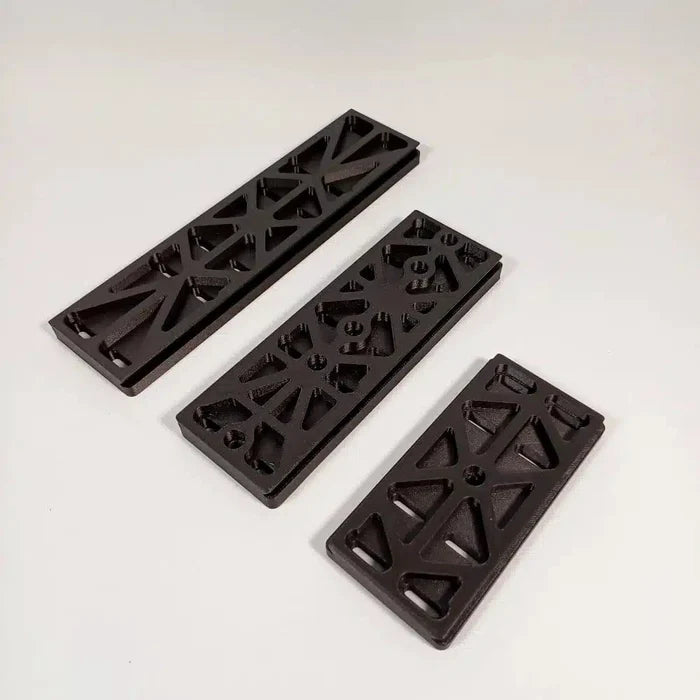

Selected size of Losmandy-Style Carbon Dovetail :

• Light-Duty Versions For Accessories:
  • 6in – 150mm:  140 grams (0.3 lbs)

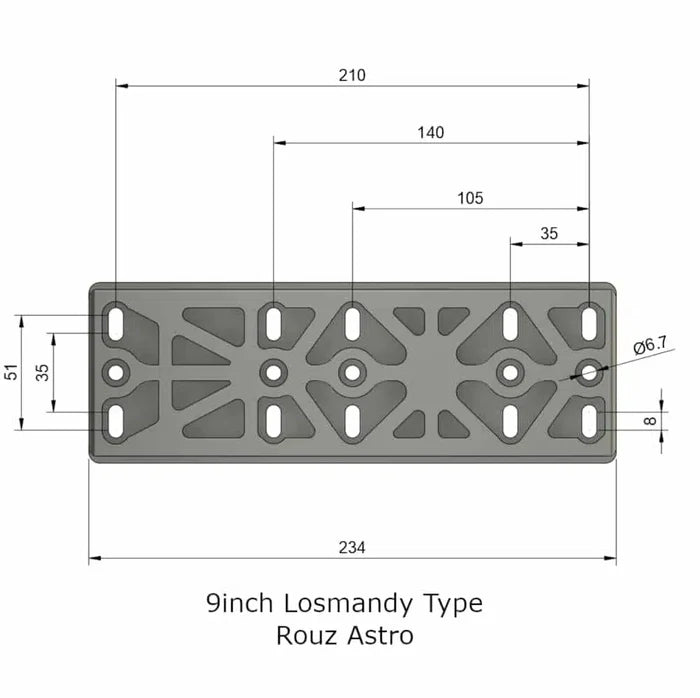

  • 9in – 230mm:  180 grams (0.4 lbs)
  • 11in – 275mm:  220 grams (0.5 lbs)
  • 12in –  300mm:  260 grams (0.6 lbs)
• Heavy-duty versions:
  • 6in – 150mm:  190 grams (0.45 lbs)
  • 9in – 230mm:  290 grams (0.65 lbs)
  • 11in – 275mm:  330 grams (0.75 lbs)
  • 12in –  300mm:  420 grams (0.9 lbs)

Warranty & Manual

Rouz Astro's 1 year warranty
