ZWO New T2 Tilter (T2-Tilter-II)

ZWO T2 Tilter

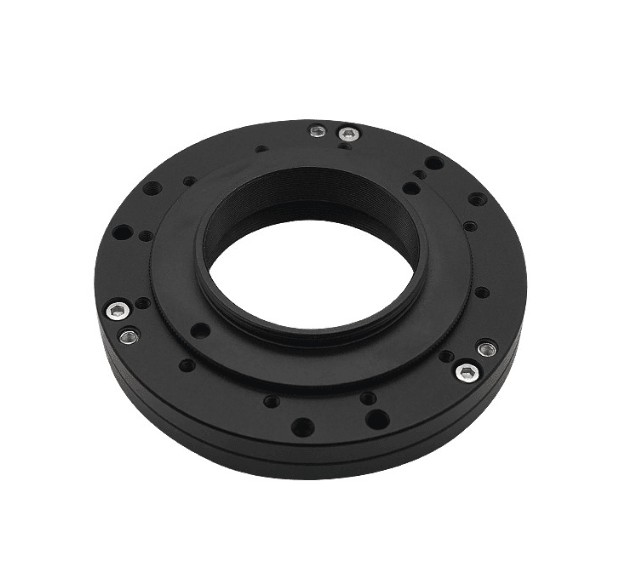

The ZWO T2 Tilter is mainly used to reduce newton ring when solar imaging in H-alpha. It can also be used to adjust the camera imaging plane by rotating the six nuts in the main body when the sensor plane is uneven.

Applicable cameras

All ASI cameras except ASI071, ASI2600 and ASI6200.

Connection method

1. Cooled camera: ASI294/ASI1600/ASI183/ASI533

ASI294/ASI1600/ASI183/ASI174

These cameras do not need to connect to the T2-T2 adapter

ASI178/ASI290/ASI224/ASI120

These cameras need to connect to the T2-T2 adapter first.

Technical Specifications

Main body：Diameter 78mm，11mm without the T2-T2 adapter

T2-T2 adapter：Thickness 2mm

Interface: T2 (M42*0.75 thread) each side

In the Box

• T2 tilter *1

• T2-T2 adapter *1

• Hexagon wrench *1

• Screw*6
